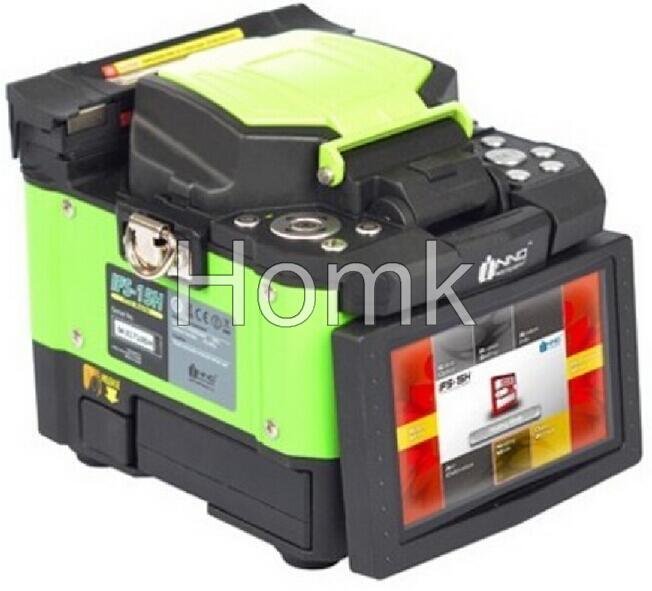

INNO Instrument IFS-15H fusion splicer

Features:

• 2.8KGweight, light and handy, user friendly, easy to operate

• Very fast splicing time, only 9 seconds

• Operates in Bi-Directional view.

• Real-time calibration of arc-discharge

• Large capacity Lithium-Ion Battery

• Friendly GUI, easy to operate

• Artificial technology, auto discriminate fiber and auto select fusion mode

• Auto compensate arc-discharge according to temperature and air pressure

• USB master port, easy to upgrade software

• Entire environmental protection design conforms to the ROHS standard

• High density windproof design, newest fusion technology (High: 168mm, wide: 145mm

Specifications

IFS-15H FTTx Fiber Master The IFS-15H core-alignment fusion splicer with the new (DACAS) Digital Analysis Core Alignment System is one of the most dependable splicer on the market. The IFS-15H has a user friendly, intuitive GUI (Graphical User Interface) with a 4.3 inch high-resolution color LCD screen that is easy to see and use. With a compact size of the fusion splicer

(155mm*130mm*137mm) and the portable carrying case, the IFS-15H FTTH Master brings much more convenience for customers who works in the FTTx field. Besides the compact size, the most significant innovation is the compatibility. The IFS-15H is compatible with being widely used fibers and cables, even for splice-on connector. It combines the functions of both splicing and heating for those cables which are popular in FTTx: 250μm fiber, 900μm fiber, flat cable, fiber jumper and splice-on connector.
