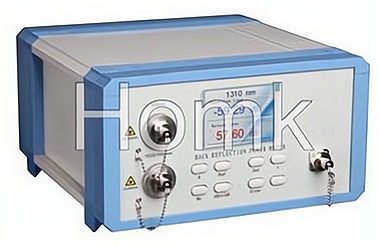

HK-800SN SM Auto Insertion and Return Loss Tester
HK800SN series No-mandrel insertion/return loss test station is a Homk newly-developed instrument,which can realize the return loss test of optical devices with no-mandrel method. it is a technological breakthrough and greatly improves the efficiency of RL test of optical devices. Meanwhile,it provides a good solution for RL test of the optical device which cannot be wrapped or in not convenient to be wrapped.
Features:
1.Real no-mandrel RL test,no matching gel.
2.Automatic IL&RL test
3.Automated,concurrent dual wavelength IL and RL.
4.Provides different working modes as OPM、IL、RL、 IL、RL、 IL2、 ILRL2.
5.High-precision optical power meter mode,wide measurement range(up to +5dBm~-85dBm).
6.USB interface to support software application.
7.User self-calibration wavelengths,up to 30 items.
8.Extensive menu setting contents,more comprehensive system function.
9.Optical power detection can be low to -85dBm.
Specifications
Model | HK800SN |
Optical Power Meter（Detection Port） | |
Detector Type | InGaAs |
Detector Size | Φ2.0mm |
Wavelength Range | +5dBm~-85dBm |
Linearity | (+5~-55dBm) |
Fiber Type | Standard single mode and multimode fiber (core diameter is not more than62.5μm) |
Total Uncertainty | ±3% |
Total Noise | <10pW |
Measurement Unit | dBm/dB |
Light Source Part（Output Port of Light Source） | |
Wavelength | 1310nm、1550nm |
Source Type | FP Laser |
Output Power | > -3 dBm |
Optical Connector | FC/APC |
Return Loss Part(Output Port of Light Source) | |
Source Type | pulsed FP Laser |
Measurement Range | -10dB ~ -70dB |
Measurement Accuracy | ±1dB (-14dB ~ -65dB) |
Standard Optical Cable | 2 ~ 10 meters |
The Shortest Measured Cable Length | 2 meters( Endface -APC)⑩3 meters (Endface-PC) |
The Longest Measured Cable Length | 1000 meters |
Main Body Part | |
Power Supply | 180V~260V AC 50Hz |
Power Settling time | 5 ~ 15 mins |
Communication Port | USB |
Operation Temperature | 0℃~+50℃ |
Storage Temperature | -15℃~+70℃ |
Weight | 8kg |
Dimension | 235*380*96(mm) |
