Fiber Ribbon Indoor Flat Cable

Details

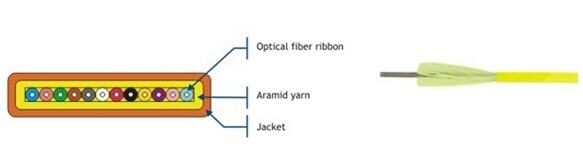

Fiber Ribbon Indoor Flat Cable


Fiber Ribbon Indoor Flat Cable Application

1. Used in indoor cabling,especially used in good laying conditions;

2. Used in optical connections in optical communication equipment rooms and optical distribution frames,optical apparatus and equipments;

3. Used in pigtails and patch cords;

4. Used as access building cable.



Fiber Ribbon Indoor Flat Cable Features

1. Good mechanical and environmental characteristics;

2. Flame retardant characteristics meet the requirements of relevant standards;

3. The mechanical characteristics of jacket meet the requirementsof relevant standards;

4. Soft,flexible,easy to lay and splice,and with big capacity data transmission;

5. Meet various requirements of market and clients.

Fiber Ribbon Indoor Flat Cable Parameters

Fiber Count

Cable dimension

(mm)

Cable Weight

(kg/km)

Tensile(N)

Crush(N/100mm)

Min. Bend Radius

(mm)

RangeofTemperature

(°C)

Long Term

Short Term

Long

Term

Short

Term

Dynamic

Static

2

2.5*3.5

7.3

80

200

200

500

50

30

-20~+60

4

2.5*3.5

7.4

80



200

200

500

6

2.5*4.0

8.2

80



200

200

500

8

2.5*4.5

9.2

80

200

200

500

12

2.5*5.0

10.0

80

200

200

500

Note: 1. All the values in the table, which are for reference only, are subject to change without notice;

2. The minimum bend radius (static) is 15mm, when G657 fiber is used.

Options

1. Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi –mode cable, or other types of fiber;

2. Fiber Count: The fiber count is usually 2,4,6,8or12,or other specified fiber count by clints;

3. Jacket Material: Enviromental flame retardant polyvinylchloride (PVC), enviromental low smoke zero halogen flame retardant polyolefin (LSZH), enviromental halogen flame retardant polyolefin (ZRPO), enviromental thermoplatic polyurethane (TPU), or other contracted material;

4. Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color.

5. Cable Dimension: The nominal cable dimension, or other contracted dimension;

6. Delivery Length: 1km or 2km, or other contracted length;

7. Other Requirements: Other contracted special request.
