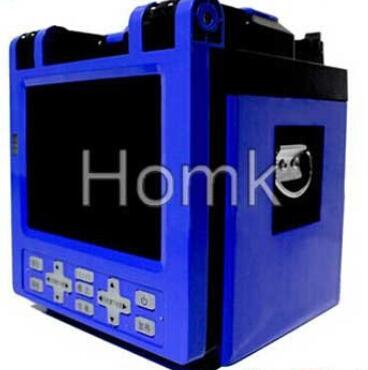

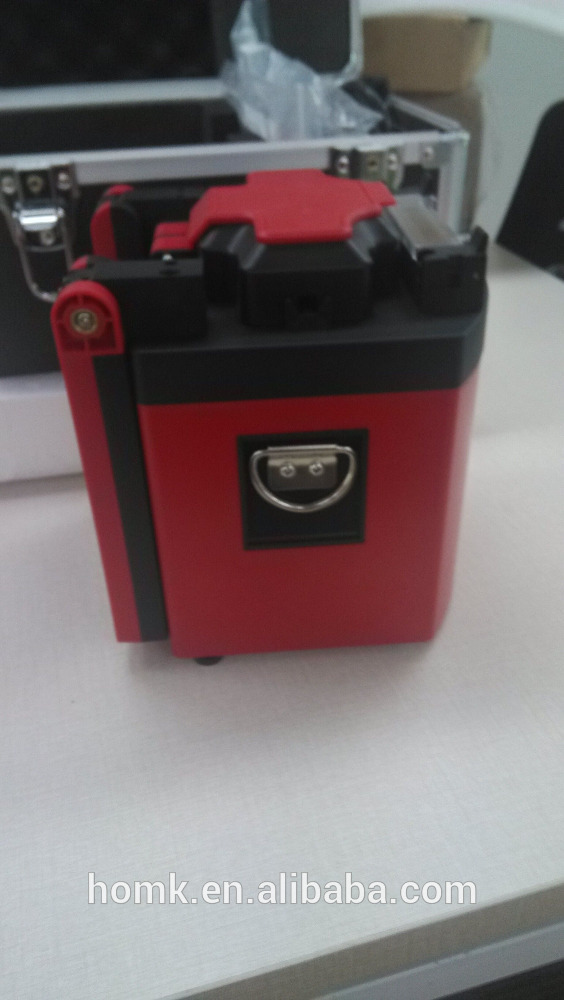

Fiber Optic SA-2C Fusion Splicer
Digital fusion splicer with automatic focus function
Fiber core can be display clearly
Single X or Y view and X & Y view simultaneously
Auto detect cleaved endface fault Display fiber cleaved and offset angle
Display core and clad offset
5.6 inch TFT color LCD monitor with clear digital image display
USB & VGAinterface
Software upgrade via USB interface
Model | SA-2C fusion splicer | ||||||
Applicable fibers | SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) | ||||||
Fiber cleaved length | 10 ~16mm (Coating diameter<250µm);16mm(Coating diameter250~1000µm) | ||||||
Fiber diameter | Cladding diameter:80 ~150µm , Coating diameter:100 ~1000µm | ||||||
Auto focusing | Available | ||||||
Fiber aligning method | Core aligning, clad aligning, manual aligning | ||||||
Average splice loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB( NZDS) | ||||||
Splicing time | Typical 9 sec,with standard SM fiber | ||||||
Heating time | Typical 36 sec | ||||||
Applicable sleeves | 60mm, 40mm and a series of micro sleeves | ||||||
Tension test | 2N(option) | ||||||
Electrode life | 5000 | ||||||
Battery capacity | Typical 400 cycles (splice and heat) | ||||||
Monitor | 5.1 inch TFT color monitor | ||||||
Terminal | USB 1.1 and VGA , software upgrade via USB interface | ||||||
Operating condition | 0 ~ 5000m above sea level, 0 ~ 95%RH and -10~50oCC, respectively, Max. wind velocity of 15m/s | ||||||
Splicing mode | Auto ,normal | ||||||
Fiber cleaved angle threshold set | 0.1 ~ 10.0 oC , 0.1oCstep | ||||||
Power supply | Li-battery 11.8V , AC100-240V DC12.6V/5.0A | ||||||
Dimension | L169*W152*H155mm | ||||||
weight | 2.4kg 2.9kg(battery) | ||||||

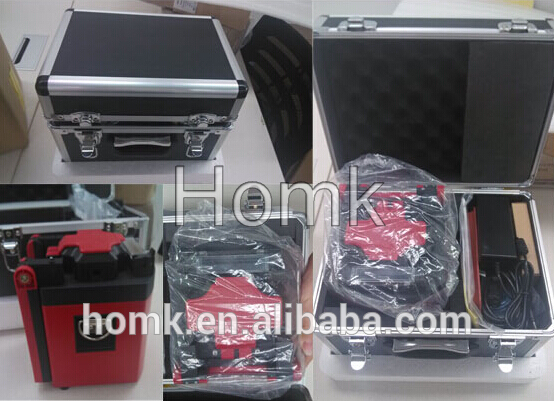

Fusion Splicer
Spare Electrodes
Cooling Tray
Manual Instruction
Carry Case
Fiber Cleaver
Fiber Stripper
AC Power Cord
