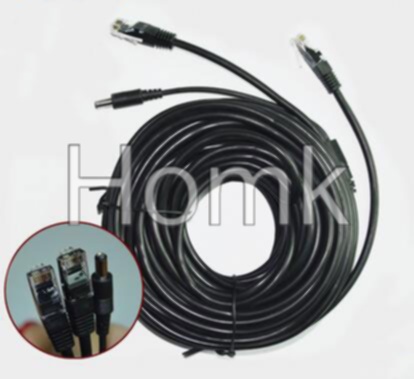

Fiber Optic Network Cable cat5e
Descriptions Of utp waterproof network cable
Product Description: | |
Rated temperature: | 60℃,75℃,90℃ |
Installation temperature: | -30℃~+50℃ |
Minimum bending radius: | >4P 4D |
Reference Standard: | UL444,UL1581 |
Bare solid copper conductor | |
RoHS/REACH Complied PVC,PE or LSZH jacket | |
Complies to TIA/EIA-568-C.2&ISO/IEC 11801 | |
Application: | 100Base-TX 100Base-T4 100VG-AnyLAN 1000Base-T(Gigabit Ethernet) ATM |
Cable Construction (CAT5e)
Item No.
| Construction
| Nominal Conductor Dimension (mm) | Nominal Insulation Diameter (mm) | No.of Paris
| Nominal Cable OD. (mm) | Type of Jacket
| Remark
|
214102-1/214102/214702-1 | UTP | 0.50 | 0.88 | 4 | 5.1/5.4 | PVC/PE/LSZH | 100MHz |
214302 | UTP | 0.51 | 0.95 | 4 | 6.5 | PE | Water blocked Tape 100MHz |
214502 | UTP | 0.50 | 0.90 | 4 | 6.3 | PVC+/PE | 100MHz |
214102-2/214702-2 | UTP | 0.51 | 0.91 | 4 | 6.3 | PVC/LSZH | 350MHz |
