Shenzhen Homk Telecom Tech Co., Ltd.

FHP12 Series Mini Optical Power Meter

Details

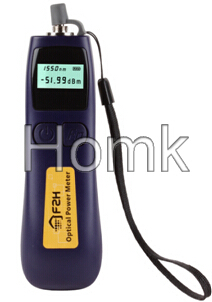

FHP12 Series Mini Optical Power Meter


Description:

FHP12 Series Mini Optical Power Meter has compact structure and stable performance and ensures high measuring precision of 850nm,
1300nnm, 1310nm, 1490nm, 1550nm and 1625nm wavelengths. Used together with Optical Laser Source, it could accurately measure the
loss of bier, cable and other passive optical devices.



Feature:

1. Imported sensor head

2. 2.5mm universal interface (support FC/SC/ST connectors)

3. Low power consumption, continuous work more than 100 hours

4. Linear optical power and logarithmic power display

5. Automatic measuring range adjust and power remains indication

6. Relative value measurement

7. Compact and portable design



Specification:

Type

FHP12-A

FHP12-B

Display Range

+10~-70dBm @1550nm

+26~-50dBm @1550nm

Resolution

0.01dB

Calibrated Wavelength

850/1300/1310/1490/1550/1625

Sensor Type

InGaAs

Accuracy

0.35dB±1nW

0.35dB±10nW

Working Wavelength

800~1700nm

Continuous Working Hours

about 230 hours (standby time: about 3,500 hours)

Power Source

2*AAA dry batteries

Working Temp.

-10 to +50℃; <90%RH

Storage Temp.

-20 to +70℃; <90%RH

Dimension

L120nmxW33nmxH30mm / about 70g

Standard Accessories:

2*AAA batteries, carrying bag, user manual

Optional Accessories:

Male FC to female LC adapter for LC connector (model: HD078)
