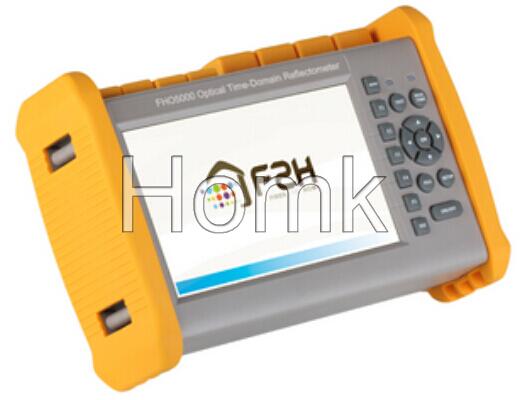

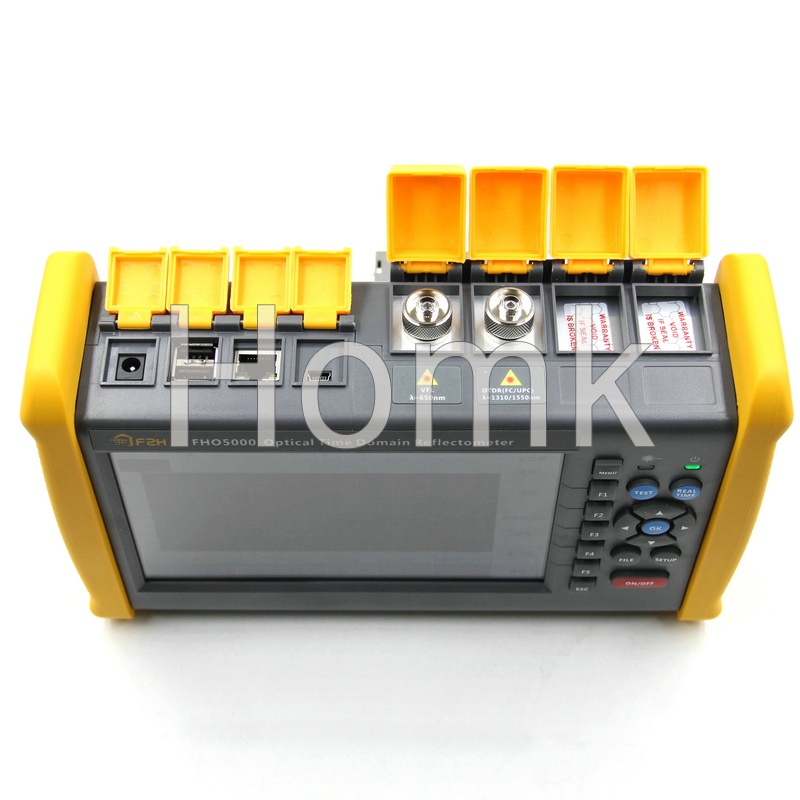

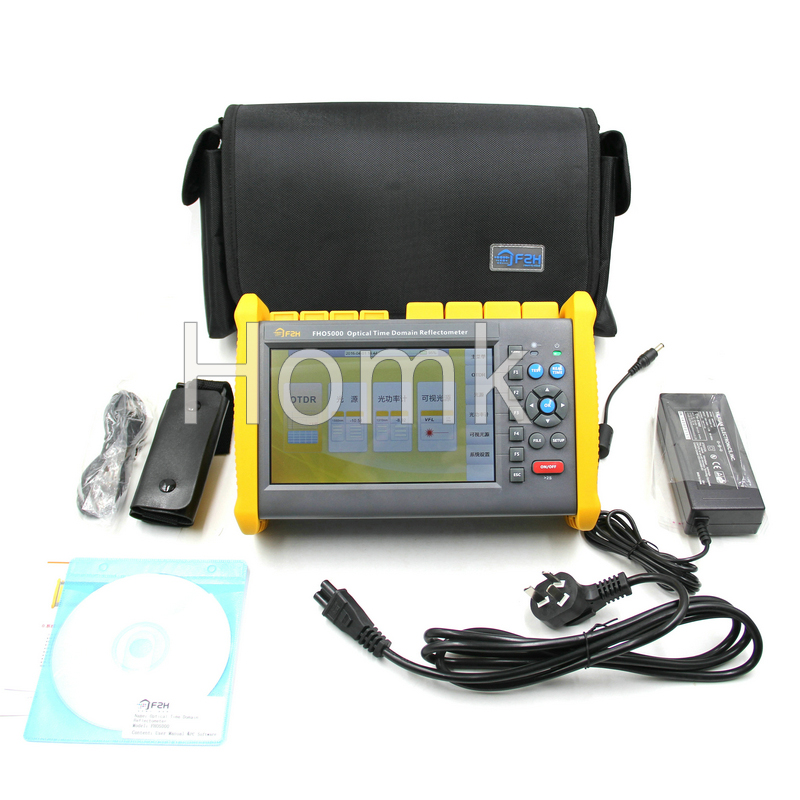

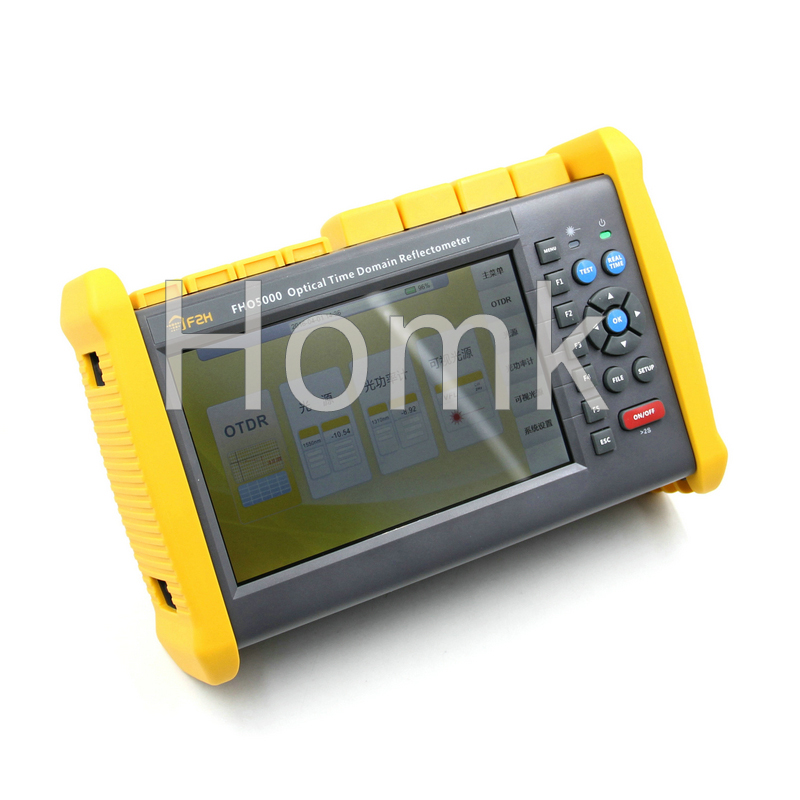

FHO5000-D26 OTDR

Details

FHO5000-D26 OTDR


FHO5000 is a portable OTDR with stable and durable, which aims at broadcast and telecommunication network measurement. Intergrated with visible fault locate system, for the convienience of the detection point in the optical network. Users can remotely access this instrument by network cable or USB wire.



FHO5000-D26 OTDR

Dynamic Range: 26/24dB

Wavelengths: 1310nm/1550nm±20nm

Dimension: 253×168×73.5mm

Interface: Internet port, 3 USB ports

Display: 7 inch TFT - LCD



Internal VFL Parameter

Laser Launcher Type

LD

Output Power

10mW

Distance Range

About 12km

Optical Connector

FC/UPC

Output Wavelength

650nm ± 10nm

Modulation Frequency

CW / 2Hz
