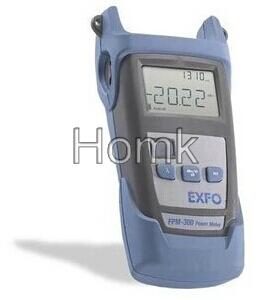

EXFO FPM-300 power meter

Details

  EXFO FPM-300 power meter



Model
FPM-302
FPM-302X
Power meter port
Ge
GeX
Power range(dBm)
10 to −60
26 to −50
Range displayed (dBm)
Down to −65
Down to −50
Number of calibrated wavelengths
10
10
Power uncertainty
± 5 % ± 1 nW
± 5 % ± 10 nW
Resolution (dB)
0.01
0.01
Automatic offset nulling
Yes
Yes
Warmup time(s)
0
0
Display units
dB/dBm/W
dB/dBm/W
Automatic wavelength recognition
Yes
Yes
Screen refresh rate (Hz)
3
3
Tone detection (Hz)
270, 1 k, 2 k
270, 1 k, 2 k
Battery life (hours) (typical)
> 300
> 300
calibration interval (years)
3
3
General Specifications
Size (H x W x D)
18.5 cm x 10.0 cm x 5.5 cm
71/4 in x 4 in x 21/8 in
Weight
0.4 kg
0.9 lb
Temperature operating
-10 °C to 50 °C
(14 °F to 122 °F )
storage
-40 °C to 70 °C
(-40 °F to 158 °F)
