Duplex Round Cable

Details

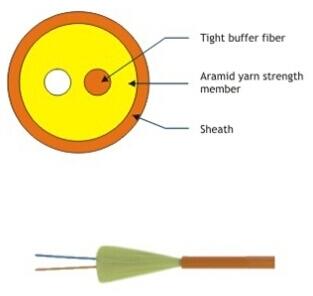

Duplex Round Cable


Applications

  1. Used in indoor cabling, especially in poor laying conditions;

  2. Used in optical connections in optical communication equipment rooms and optical distribution frames;

  3. Used as patch cords and pigtails.

  4. Used in optical connections in optical apparatus and equipments.



Features

  1. Good mechanical and environmental characteristics;

  2. Flame retardant characteristics meet the requirements of relevant standards;

  3. The mechanical characteristics meet the requirements of relevant standards;

  4. Soft, easy to splice, and with big capacity data transmission;

  5. Meet various requirements of market and clients.

 Cable Parameters



Fiber Count

Cable Dimension

(mm)

Cable Weight

(kg/km)

Tensile

(N)

Crush

(N/100mm)

Min. Bend Radius

(mm)

RangeofTemperature

(°C)

Long Term

Short Term

Long Term

Short Term

Dynamic

Static

2

3.2

8.5

80

150

200

1000

20D

10D

-20~+60

2

3.8

11.5

100

200

200

1000

2

4.5

15.2

150

300

200

1000

2

5.0

17.5

200

400

200

1000

Note: 1. All the values in the table, which are for reference only, are subject to change without notice;

   2. D is outer diameter of the round cable;

     3. The minimum bend radius (static) is 5D when G.657 fiber is used.





Options

  1. Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi –mode cable, or other types of fiber;

  2. Jacket Material: Enviromental flame retardant polyvinylchloride (PVC), enviromental low smoke zero halogen flame retardant polyolefin (LSZH), enviromental halogen flame retardant polyolefin (ZRPO), enviromental thermoplatic polyurethane (TPU), or other contracted material;

  3. Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;

  4. Cable Dimension: The nominal cable dimension, or other contracted dimension;

  5. Delivery Length: 1km or 2km, or other contracted length;

  6. Other Requirements: Other contracted special requests.
