Direct Burial Outdoor Cable(GYXTW53)
Product Name:Direct Burial Outdoor Cable
Model:Armored and Sheathed Double Central Loose tube GYXTW53
Outdoor Fiber Optic Cable Application:
☆.Outdoor Fiber Optic Cable adopted to Outdoor distribution.
☆.Outdoor Fiber Optic Cable is suitable for aerial duct and buried method.
☆.Long distance and local area network communication.
Outdoor Fiber Optic Cable Characteristics:

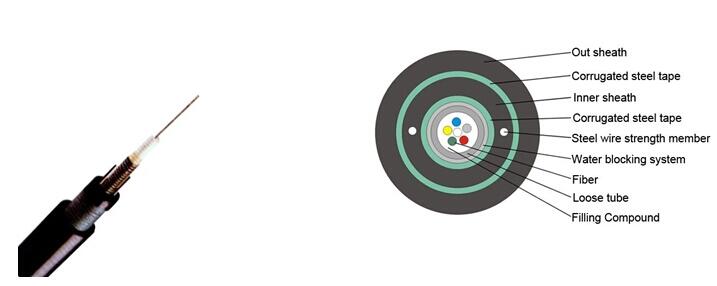

☆.Steel-wire parallel member.filler protect tube fiber steel tape amored.
☆.Excellent mechanical and environmental performance.
☆.compact structure.light weight.
☆.can be installed conveniently and operated simply.
| Outdoor Fiber Optic Cable Technical Parameters: | |||||||||
| Cable Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load （N/100mm) | Minimum Bending Radius (MM) | Storage temperature | |||
| (MM) | (KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 2 | 12.0 | 165.00 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| 4 | 12.0 | 165.00 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| 6 | 12.0 | 165.00 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| 8 | 12.0 | 165.00 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| 10 | 12.0 | 165.00 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| 12 | 12.0 | 165.00 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| 24 | 12.0 | 165.00 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| Outdoor Fiber Optic Cable Characteristics | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A、B、C、D） | B1.1:Conventional fiber | ||
| G.653 | B2: Zero dispersion shifted | |||
| G.654 | B1.2 :Cut-off wavelength shifted | |||
| G.655 | B4: Main technical data for positive dispersion shifted single-mode fiber | |||
