Details
DC design fiber ip67 clamp waterproof connector
The waterproof connector offers high performance armor fiber cable assemblies that are designed for use in different harsh environments and offer better protection than standard patch cords.
Stainless steel tube prevents fiber damage, improves system stability and reduces maintenance costs. They are suitable for LAN systems, FTTH, intelligent fiber optic networks in buildings, underground networks, closed-circuit television systems, broadcast and cable
networks.The waterproof

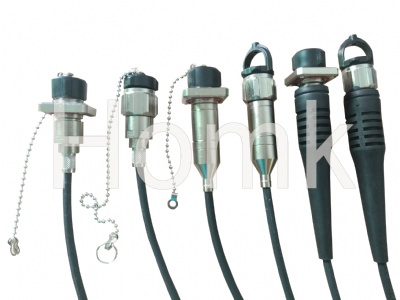

connector has a variety of styles, such as waterproof cable connector,
outdoor waterproof connector, plastic waterproof connector, 12-core and
24-core waterproof connector
Specifications: | |||||
InsertionLoss(IL) (IEC 61300-3-4) | MM | SM Super PC | SM Ultra PC | SM Angle PC | SM Angle PC Premiun |
0.15dB type | 0.15dB type | 0.15dB type | 0.15dB type | 0.1dB max | |
ReturnLoss(RL) (IEC 61300-3-4) | >30dB | >45dB | >50dB | >60dB* | |
Operating temperature | ﹣40℃ to ﹢50℃ | ||||
Durability | min 1000 cycles | ||||
Assemblity | glue and polish | ||||
Connection | physical contact | ||||
Lock mechanism | coupling nut and snap-on | ||||
Standards | Telcordla GR-3120 | ||||
Ferrule material | full ceramic zirconia |
