Details

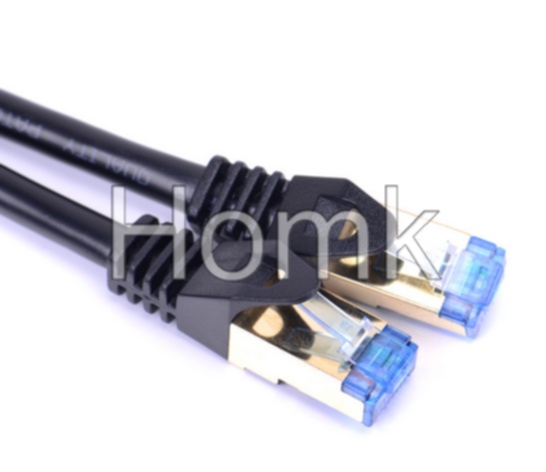

Black Fiber Optic Network Patch Cord cat6
1.Fast and reliable connection
2.Twisted pairs with bright color for easy recognition3.resistance: (f=1-100MHZ)100±15%
4.delay deviation: (max)40ns/100m
5.rated transmission rate: (NVP):72%
6.tensile resistance: (max)250N
7.temperature range: -40°C~+70°C
8.Color Code: Pair 1: white/blue-blue/white Pair 2: white/orange-orange/white
Pair 3: white/green-green/white Pair 4: white/brown-brown/white
or as per customer's requirements
9.OEM and ODM
10.Sample available
Model | Indoor Cat6 UTP Network Cable |
Conductor Material | copper/CCA |
Conductor Dimension | 23AWG/0.511mm 24AWG /0.404 26AWG/28AWG |
insulation thickness | 0.18mm |
The thickness of Jacket | 0.55mm |
Outer Diameter | 5.4mm/5mm |
Insulation | PE |
Number of Twisted Pair | 8P |
Shielding | STP/FTP |
Ripcord yes/no | Yes |
Jacket | PVC (Polyvinyl-Chloride) or LSZH (Low Smoke Zero Halogen) |
Color | white/gray/blue/black or as your request |
