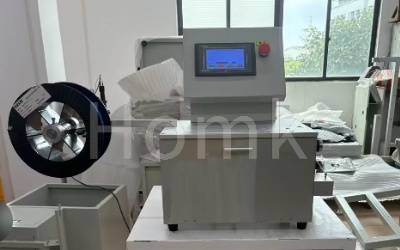

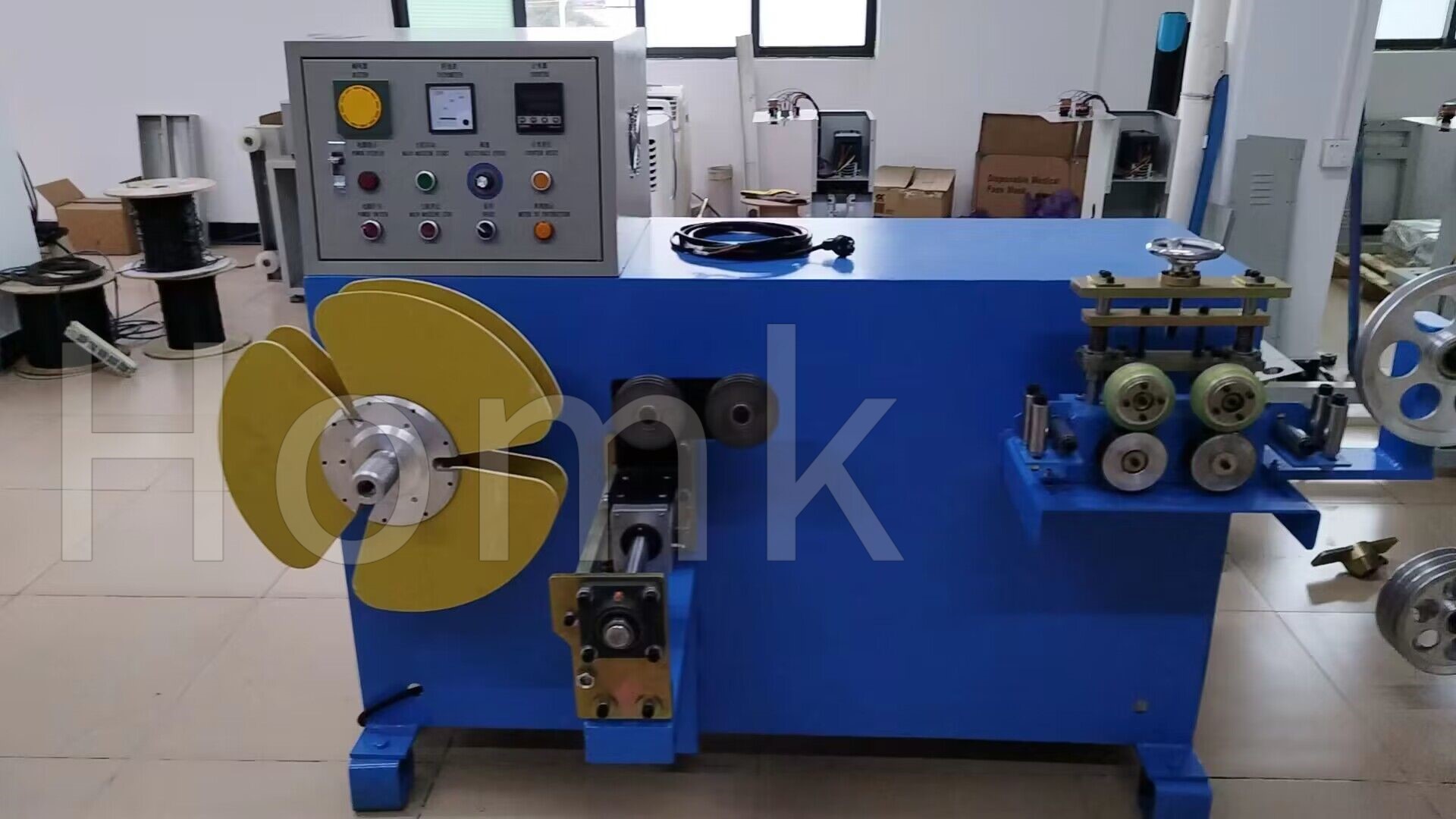

Automatic FTTH Cable Cutting Arranging Machine

Features of this machine

1. Fast and convenient to install and unload the discharge disc, adopt the combination guide wheel to store the line, and use the linkage brake mechanism to lay out the line without disorderly line.

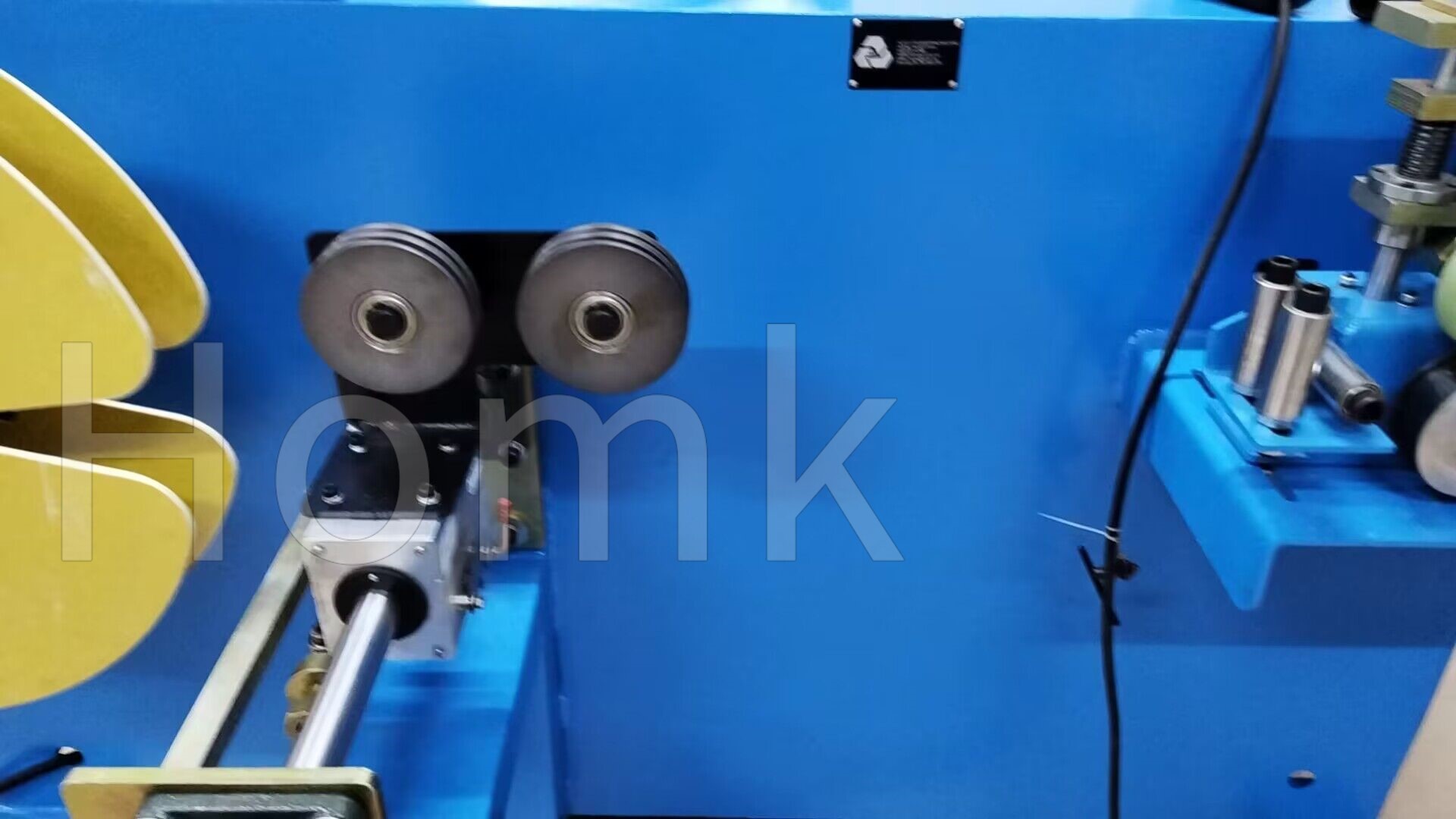

2. line arrangement adopts the light rod type guide wheel and the rising force type automatic line arrangement, the line arrangement is neat and beautiful, the mature operator 30-40 seconds one plate.

1. the cable into a circle, can use self-expansion type pancake machine, the inner diameter can be freely tight, can be quickly bundled and easily removed, high efficiency, short time.

2.2 Scope of application

1. wire disc outer diameter φ300mm( adjustable).

2. inner core of wire disc φ120mm( optional inner diameter of wire disc by customer).

3. wire disc width 30-80 mm( adjustable).

2. cable type leather cable, butterfly cable. self-supporting leather wire ,12 core optical cable.

5. reel speed r/min.0-600

6. Speed control 2.2 KW inverter

7.Cable cutting specification :2.0-12.0 mm single and double core cable.

Installation of a leather cable machine

 1. Length setting: Set the length of the cable required on the meter holder.

 2.Speed setting: cable speed 0-100% can be adjusted at will (60% recommended)

 3. meter reset: when you need to produce the length of another product, press the meter reset key to reset the length.

Machine size: host length * width * height 2800mm * 1000mm * 1250mm

工作温度     0℃~40℃

Operating temperature: 0 ℃ ~ 40 ℃

相对湿度     15% ~ 85%

Relative humidity 15% - 85%

电    源：   220~230VAC    50Hz/60 Hz

Power supply: 220 ~ 230VAC 50Hz / 60 Hz

电源功率：   2.2KW

Power supply power: 2.2kw

储存条件

Storage conditions

环境温度介于   -10℃~50℃

The ambient temperature is between - 10 ℃ ~ 50 ℃

相对湿度       15%~85%

Relative humidity 15% ~ 85%

振    动       1.0g  5~100Hz   45min

Vibration 1.0g 5 ~ 100Hz 45min

承受冲击       5cm自由落体

5cm free fall under impact
