Aluminum Stranded Cable(GYTA)
Product Name:Outdoor Fiber Cable
Model:GYTA Aluminum Tape layer Loose Tube
Outdoor Fiber Cable Application:
☆.The outdoor fiber cable adopted to Outdoor distribution.
☆.Outdoor fiber cable is suitable for aerial .pipeline laying method.
☆.Long distance and local area network communication.
Outrdoor Fiber Cable Characteristics:

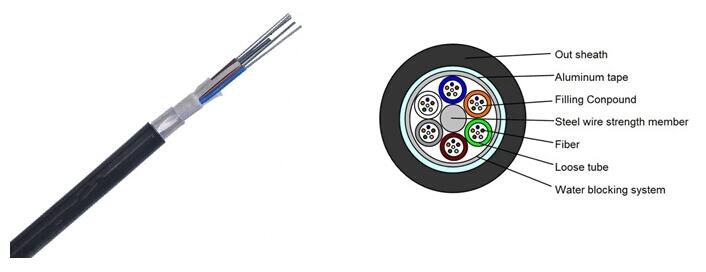

☆.Steel wire strength.filler protect tube fiber.Aluminum tape armord.
☆.Good ultra violet radiation resistant property.
☆.Good moisture-resistance.
Outdoor fiber cable Technical Parameters:
Cable Count | Out sheath | Weight | Minimum allowable Tensile Strength | minimum allowable Crush Load | Minimum Bending Radius | Storage | |||
（MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | |
24 | 10.5 | 90.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
36 | 10.5 | 90.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
42 | 10.5 | 90.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
48 | 10.5 | 90.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
60 | 10.5 | 90.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
72 | 13.5 | 160.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 96 | 13.5 | 160.0 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 144 | 15.5 | 180.0 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
Outdoor Fiber Cable Characteristics: | ||||
Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
A1b:62.5/125 | ||||
Singlemode | G.652(A、B、C） | B1.1:Conventional fiber | ||
G.652D | B2: Zero dispersion shifted | |||
G.655 | B1.2 :Cut-off wavelength shifted | |||
G.657（A1、A2 、B3） | B4: Main technical data for positive | |||
