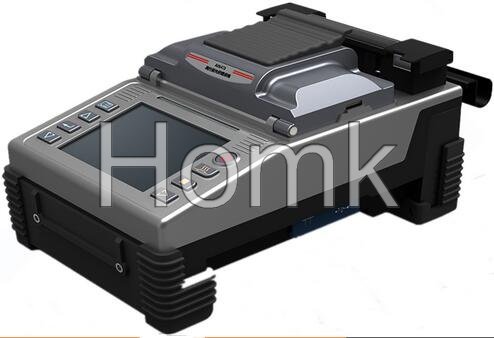

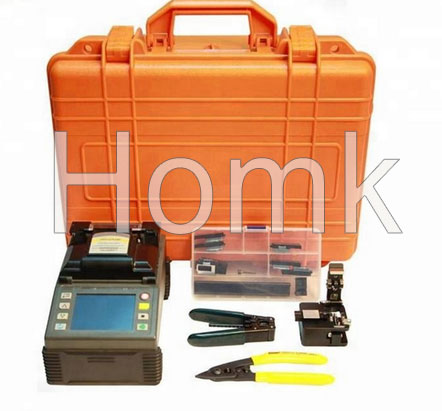

AV6473 Handheld Fiber Fusion Splicer
AV6473 FTTH Fusion Splicer is a new designed fiber splicing equipment.The powerful funtcion and super low splicing loss make it be competent for construction of trunk line and FTTX :Because of the compact configuration and precise mechanism,it can adapt to execrable enviroment; The novel fiber imaging system make the image clearer and exquisiter;The real-time embeded OS provide friendly man-machine interface and abundant functions. The bulit-in large capacity Li-Ion battery can support long-time fieldwork.The embeded sensors measured temperature, humidity and air pressure supply closed-loop feedback control ,so the instrument can adopt all kinds of atrocious circumstance and the consistency of splicing loss was improved.

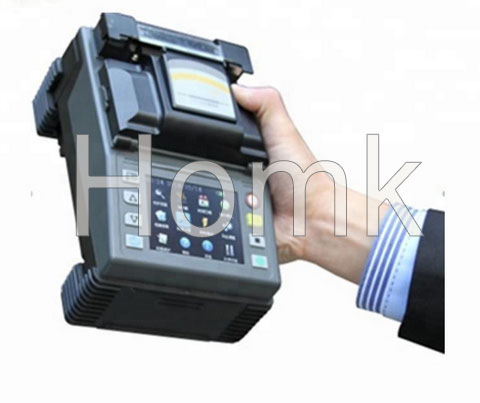

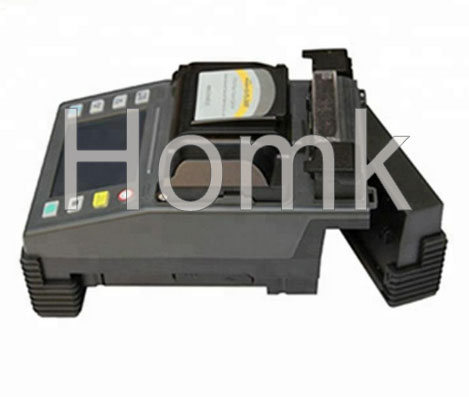

new-designed and digital fusion splicer and automaticsmall size, light weight, only 2.8kg with battery
high efficiency, 8 sec. splice time,30 heat time
automatic heating when shut down heating cover
automatic splicing when shut down windscreen
digital high-definition 5.7 LCD screen for displaying more perfect
Single X or Y view simultaneously, optical magnification of 304 times
discharge calibration system , generally do not to adjust parameter
long electrode life, discharge up to 4000
provide USB and VGA ports
accurate and real time appearance of dump energy of battery
built-in high capacity of lithium battery
be able to heat 200 times without stop
Specifications:
Applicable | SM, MM, DS, NZDS |
Fiber cleaved length | 8-16mm |
Fiber diameter | Cladding diameter: 80-150um; coating diameter: 100-1000um |
Oprate mode | Automatic ,semi-automatic ,manual |
Fiber aligning method | Advanced PAS alignment mode |
Average Splice Loss | 0.02dB (SM), 0.01dB(MM), 0.04dB(DS), 0.04dB (NZDS) |
Typical splicing time | 9 second with standard SM fiber |
Return loss | >60dB |
Fusion program | 12 (templet), 188 (user) |
Tube typical heating time | 30 second |
Protection sleeve length | 60mm, 40mm |
Storage of splice result | 5000 results, 3 parameter per result |
Tension test | 2N |
Fiber magnification | Vertical dual display, 304 times magnification; level of dual display, 152 times magnification |
Electrode life | 4000 |
No. of splice/ heating with battery | Typical 130 cycles |
External interface | provide USB and VGA ports |
Display screen | 5.7 inch 640*480 color LCD monitor |
Power Supply | Built-in lithium battery 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A |
Heat shrinkable tube | 60mm,40mm and other series of tube |
Operating condition | 0-5000m above seal level, -10~50ºC, max wind velocity of 15m/s |
Dimension | 150(D)x150(w)x160(H)mm |
Weight | 2.8KG including battery |
