96 core Fiber Optic Distribution frame Module
Product Description

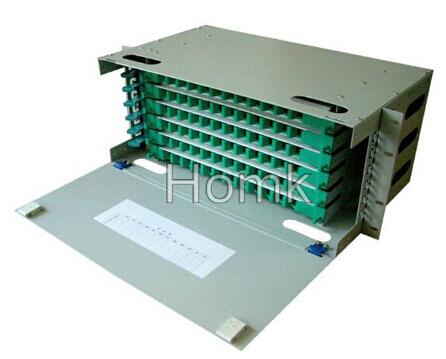

ODF Fiber optic patch panel is also called fiber distribution panel. Its main function is to terminate the fiber optic cable
and provide connection access to the cable’s individual fibers. Fiber patch panels are termination units, which are

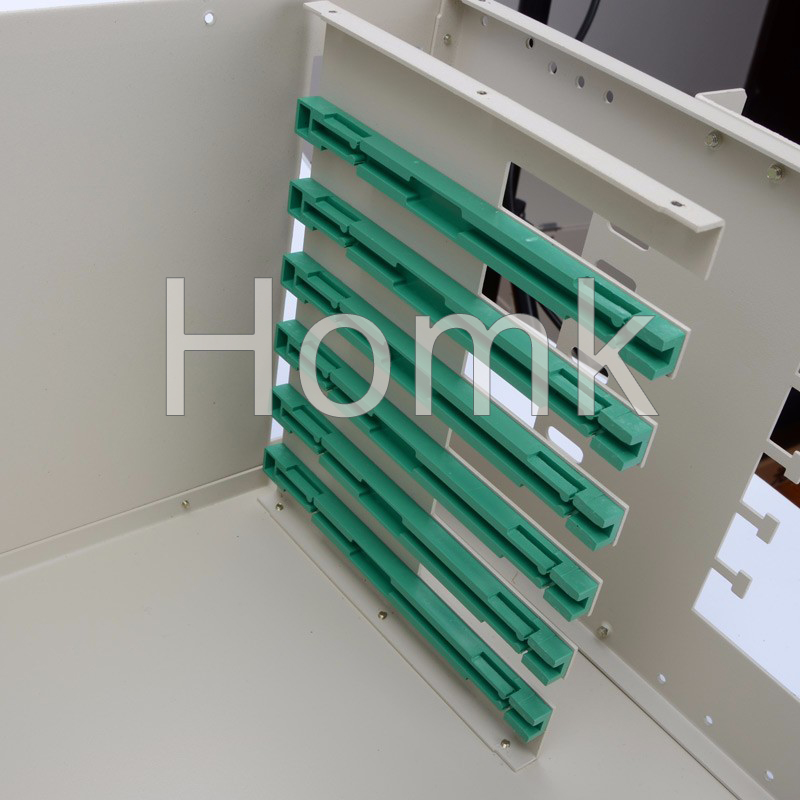

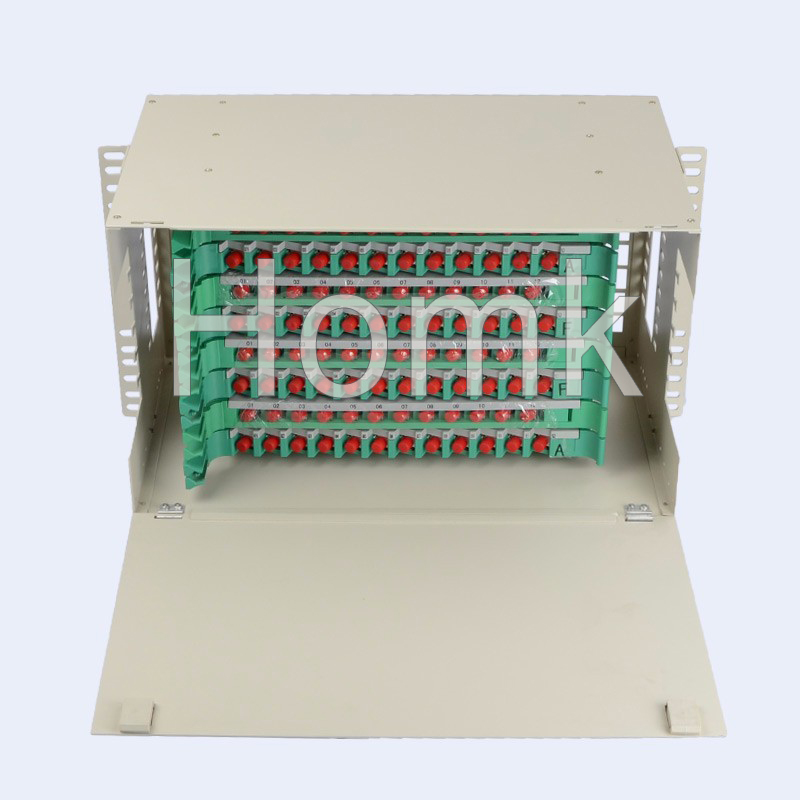

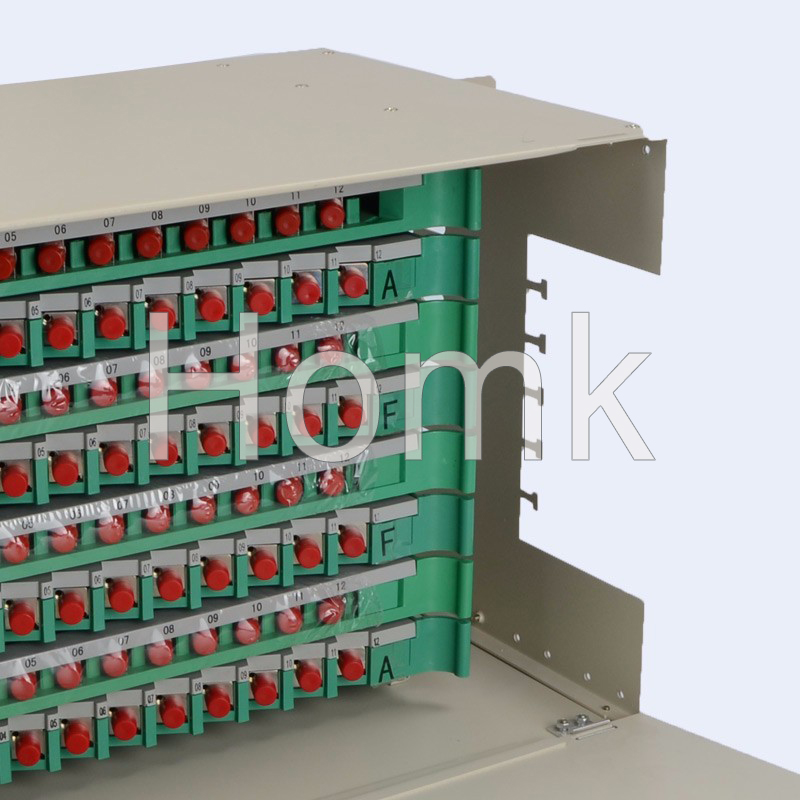

designed to provide a secure, organized chamber for housing connectors and splice units. Fiber patch panels are
available in rack mounted or wall mounted. Both types can house, organize, manage and protect fiber optic cable,
splices and connectors. Rack mount panels is usually 19" or 23" universal width. The height of patch panel can be
1u, 2u, 3u, 4u, 6u, etc. The opening of the optical fiber patch panels can be slidable or fixed or revolving. Wall mount
patch panel is more customized, it can be any structure and dimension. And the patch panels can be used for indoor
or outdoor application.
Features
Standard size, light weight and reasonable structure
Splice tray inside changeable
Can be used in 19'', 23'' standard distribution frame
Suitable for ribbon and single fiber
Various panel plate to fit different adapter interface
Front mark on the plate is easy for identification and operation
24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters
Easy for management and operation
ODF Electricity Performance
1. Insertion loss: <0.3dB
2. Return loss: PC< 40 dB, UPC<50dB, APC< 60dB
3. Insulating resistance between the box and the earthing device: 1000MΩ /500VDC
4. Voltage- resistance between the box and the earthing device: Under the effect of 3kv/DC/1min, non-puncture,
and no arc-over.
Application
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
