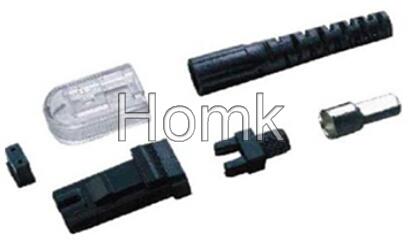

3.0mm MTRJ fiber connector Optical fiber connector kits Insertion Loss: Single mode ≤ 0.2dB & Multimode ≤ 0.3dB Return Loss: PC ≥ 50dB, UPC ≥ 55dB & APC ≥ 65dB Durablity <0.2dB typical change, 1000 mating Operating Temperature: -40 to 80 Ferrule Hole Sizes; Singlemode: 125.0+1/-0um, concentricity ≤ 1.0um 125.5+1/-0um, concentricity ≤ 1.0um 126.0+1/-0um, concentricity ≤ 1.0um Multimode: 125um concentricity ≤ 3um 127um concentricity ≤ 3um 128um concentricity ≤ 3um Availablity: -The connector can be supplied as a pre-assembled one piece connector or as connector kits and one piece. -Clips are available for SC and LC duplex connectors -PC and APC are available -Boots in a variety of colors Light Characteristic: Item: Type:LC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc Multi-Mode Single-Mode Operating Wavelength 850nm& 1300nm 1310nm & 1550nm Typical Insertion Loss 0.2dB & 0.2dB 0.2dB & 0.2dB Mechanical Testing Repeatability ≤ 0.2dB Durability > 1000 (Times) Exchange ≤ 0.2dB Temperature Storage Temperature 25 ~+85°c Operating Temperature 25 ~+85°c Length, Color, Out-Diameter, Fiber counts According to the customers' requirement
