Intelligent Fiber Microscope(HK-IF)

Intelligent Fiber Microscope(HK-IF)
Item: Intelligent Fiber Microscope(HK-IF) Product Name: Intelligent Fiber Microscope(HK-IF)
Descriptions:
Fiber microscope HK-IF is has many automatic intelligent functions such as auto analyze,auto focus and auto change fiber functions. It makes inspection smart and efficient.

Features
1. Auto analyze
2. Auto change fiber
3. Auto focus
4. Fixtures for different connectors
5. Elegant design
6. Auto generate reports in excel format.

Auto Analyze
HK-IFcan define the slightest defects and scratches on the endfaces due to its advanced software algorithms.It can judge the endfaces by software without human interference and eliminated human factors.

Fast Test Speed
HK-IF has well designed optical system and automatic platforms.It provides clear image and auto change fiber functions. It need only 5s to test 12 core multifiber connectors.

One Click Test
After insert the fiber connector, the HK-IF will test all the endfaces of up to 72 core connector just in one click on "Measure" button.

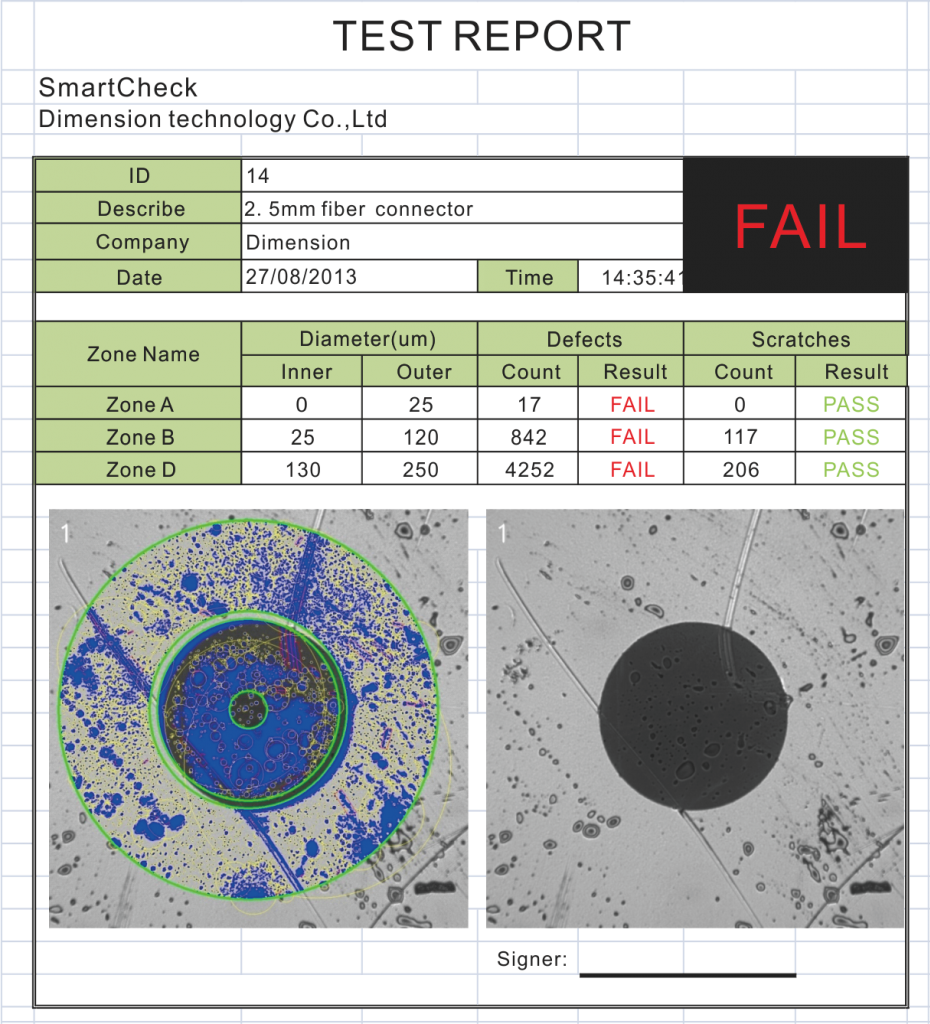

Auto Generate Reports
HK-IF can generate reports after each test, makes endface situation traceable.
21
Specification
Item
Parameters
Magnification
20X
Resolution
0.27um
Connectors
Single fiber,MTRJ,MPO,MTP(2-72 core)
Speed
5s for 12core connector(exclude focus)
Range
6mm*15mm
Data link
USB 2.0
Power supply
DC 24V
