MPO Fiber Optic Connector

MPO Fiber Optic Connector
Item: MPO Fiber Optic Connector Product Name: MPO Fiber Optic Connector
Descriptions:

MPO singlemode fiber optic connector for CCTV and telecomunication, mpo connector,  MPO fiber optic connector,  mpo singlemode fiber connector

Specification:

Material: Zirconia (ZrO2) ferrule

Insertion loss: <0.2dB
Return loss: >65dB
Service life: >1000 times
Temperature range: -40° ~85°

Features:

1) Superior qualified standard  polishing;
2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);

3) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);

4) φ0.9mm, φ2.0mm, φ3.0mm cable optional

5) Simplex and duplex connector available;

6) Good exchange ability and good durability;

7) Available in fiber bunch, ribbon fan-out, pigtail available;

8) Meets ISO9001, ROHS and Bell core GR 326-core standards;

9) Customized specifications are welcomed.

Application:
Telecommunication
CATV
LAN (including FITL, FTTH and FTTD)
Data network

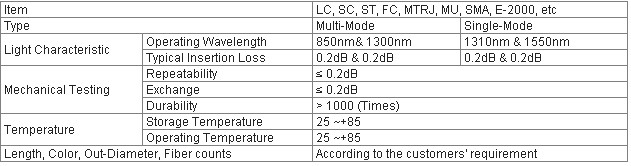

Parameter:

MPO singlemode fiber optic connector for CCTV and telecomunication
